BIC Ductile Cast Iron Manhole Cover in India
BIC’s latest range of ductile manhole covers & gratings forays into a different material – Ductile Iron. We bring over 50 years of experience in castings to these SG Iron Covers & Frames. These covers are designed in accordance with the international standard EN 124-2 keeping in mind optimal safety, reliability and long service life.
As a leading exporter and manufacturer of Ductile Iron Manhole Cover in India, we supply our products across the globe to countries such as Canada, Italy, Spain, the UK, USA and more.
Why choose BIC’s Ductile Iron Manhole Covers & Gratings
- Superior Engineering Design : Our products are designed to export standards and are highly optimized leading to reduction in weight while still retaining the load bearing capacity.
- Lighter Weight: Our products are upto 68% lighter than the competition, while retaining the same load bearing capacity, thus helping you save major purchasing costs.
- Reduced Labour: Owing to its lighter weight, the ease of handling and efficiency of installation increases significantly for the workers, leading to more savings for the buyer.
- Reduced transportation costs: Now in the same truck, you can get more quantities of DI Covers & Frames, helping you save further.

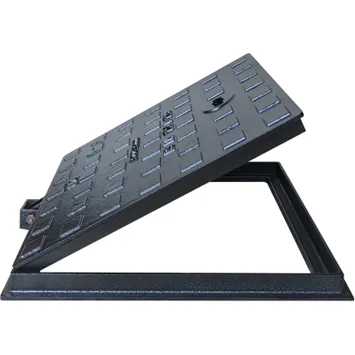

- Theft Safe: Our hinge type designs are suited for spaces without security as they prevent stealing of covers & grates.
- Longevity: For the same price, DI covers will last at least 3x longer than other materials in the market. It is a win-win.
Product Selector Guide

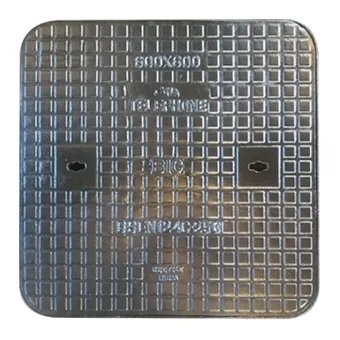

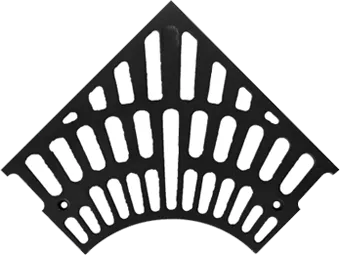

Ductile Iron Chamber Cover, Cast Iron Drainage Covers and Grates Guide
As of the date of writing this article, the Bureau of Indian Standards does not have a separate code for Ductile Iron manhole covers. As a result, the most popular code used in India is the European EN124. Manhole covers and grates up to and including a clear opening of 1000 mm are divided into 6 load classes.
- A 15 : Capable of withstanding 15kN or 1.5MT of load. They are suitable for areas which can only be used by pedestrians and pedal cyclists.
- B 125 : Capable of withstanding 125kN or 12.5MT of load. They are ideal for pedestrian areas and comparable areas, car parks or car parking decks.
- C 250 : Capable of withstanding 250kN or 25 MT of load. The area of kerbside channels of roads which, when measured from the kerb edge, extends a maximum of 0.5 m into the carriageway and a maximum of 0.2 m into the pedestrian area.
- D 400 : Capable of withstanding 400kN or 40 MT of load. The carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
- E 600 : Capable of withstanding 600kN or 60 MT of load. Areas imposing high wheel loads, e.g. docks, aircraft pavements.
- F 900: Capable of withstanding 900kN or 90 MT of load. Suitable for areas imposing particularly high wheel loads, e.g. aircraft pavements.
A15
15 KN
In areas which can only be used by pedestrians and pedal cyclists.
B125
125 kN
Suitable for pedestrian areas and comparable areas, car parks or car parking decks
C250
250 kN
Meant for the area of kerbside channels of roads which, when measured from the kerb edge, extends a maximum of 0.5 m into the carriageway and a maximum of 0.2 m into the pedestrian area
D400
400 kN
On the carriageways of roads (including pedestrian streets), hard shoulders and for all types of road vehicles.
E600
600 kN
In areas imposing high wheel loads, e.g. docks, aircraft pavements.
F900
900 kN
Suitable for areas imposing particularly high wheel loads, e.g. aircraft pavements.
Are you concerned about BIC’s DI Covers & Frames being lighter and not being able to withstand the load?
- We have been exporting DI Covers & Frames for over a decade now. Our designs conform to international standards and these are the conventional weights of manhole covers used in countries like Italy, Spain, the UK and more. We are utilizing the same design technology for the Indian market as well that will help contractors save money.
- Our foundry strictly follows the Ductile Iron grade 500-7 metallurgical standard, which ensures our products can withstand the heavy loads with light weights.
- Our designs have been vetted by reputed 3rd party inspection agencies, thus reinforcing our manufacturing and design technology.
PROJECTS WHERE BIC DI COVERS HAVE BEEN USED:
Salarpuria Sattva Aspire
Bangalore

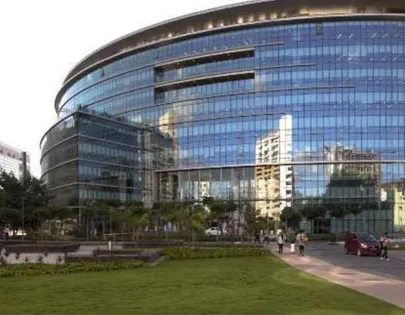

SAP Labs India
Head Office

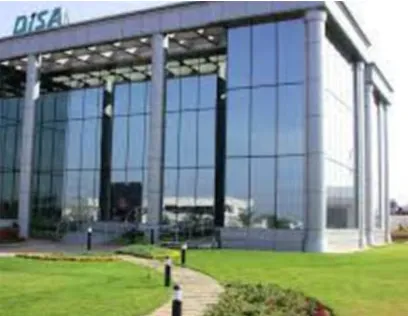

Disa India Ltd.
Bangalore Office
